SV Supply Air Valves

Features

  • Suitable for office, houses, etc, easy installation on the wall or in the ceiling
  • Manufactured from sheet steel painted white RAL9010 or RAL9016
  • Available also in Stainless steel version SV-S
  • The valve body is equipped with a cellular plastic gasket
  • The air flow is adjusted by rotating the control disc
  • Supplied with mounting ring

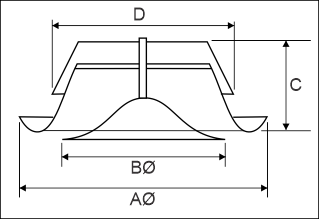

Dimensions



SV C D Box
80 115 76 42 77.5 7
100 138 92 40 97.5 7
125 164 111 46 122.5 7
150 202 135 50 147.5 7
160 211 147 54 157.5 7
200 248 194 63 197.5 7
250 305 250 75 248 7

Performance
