Egg Crate Grille - ECP







TYPE ECP Egg Crate Grille manufactured with frame of extruded Type 50S anodising grade aluminium and the grid manufactured from 0,5mm plastic sheet.

Accessories OBD = Opposed Blade Damper
  PC = Punched counter sunk holes
  CF = Concealed Fixing

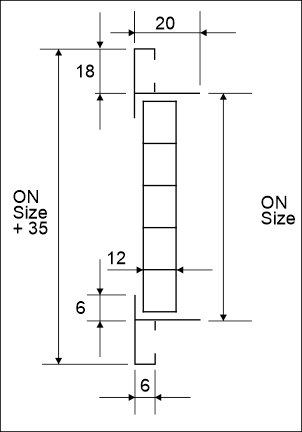

Dimensions D = ON / Normal Duct Size
    = ON - Over Neck Size
    = OS - Over Flange
Frame Options 25mm Standard
Finish Options NA = Natural Anodised
  EPC = Epoxy Powder Coating

Ordering Procedure: Example
REF QTY SIZE (LxH) TYPE ACCESS FRAME FINISH SPECIAL INSTRUCTIONS
1 15 1195 x 595 ECP OBD 25 NA "OS"

Note
(1)  Dimensions given are for 'OS' = Over Flange

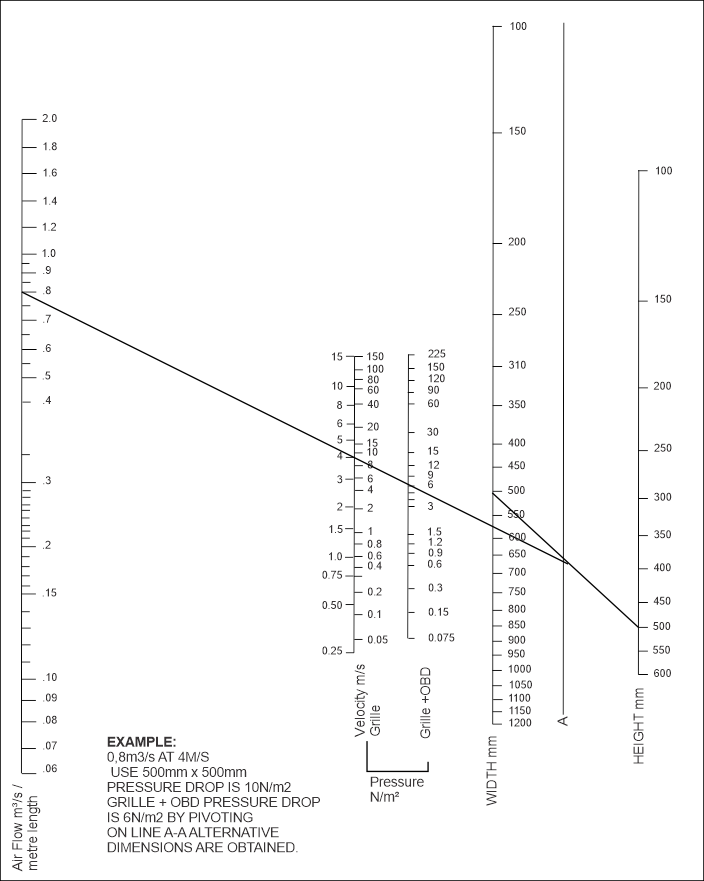

EXAMPLE
0,8m3/s AT 4M/S
USE 500mm x 500mm
PRESSURE DROP IS 10N/m2
GRILLE + OBD PRESSURE DROP
IS 6N/m2 BY PIVOTING
ONLINE A-A ALTERNATIVE
DIMENSIONS ARE OBTAINED.
