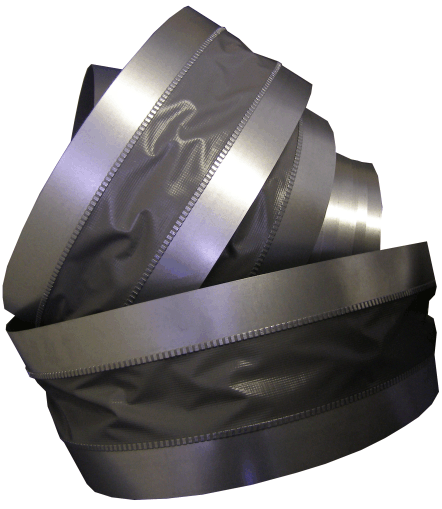

Flexible Duct connectors

  • Flexible duct connectors consist of a strip of treated cloth
  • Attached on both sides to strips of galvanised steel, using a strong mechanical joint
  • Providing airtightness
  • There is a wide range of pre-assembled, ready-to-use duct connectors
  • Offering a quick, easy, economical and efficient method of assembly

Technical description



 Diameter range    62mm - 610mm
 Temp range    -30°C - +140°C
 Air Velocity    Max 30m/sec
 Working Pressure    Max 300mmWG Min (D/30 -25) x 9.81Pa
 Material ALUDE    -45/CO-POLYMER laminated construction
 External Colour    Grey
Standard Length   10m in carton
Fire Rating (Outer Re-enforcing)   SABS 0177 Part 3 Class 4


Application
 At a notch, cut a lenth equivalent to the perimeter required plus an overlap of 5 to cm (2") for joining.

 Lift the seam outwards at right angle.

 Make a cut at the edge of the lifted seam section.

  Bend down the seam whilst ensuring that the cloth remains fastened.

 Coat the clothe with the appropriate adhesive.  Join both sides ad press together firmly.

 Spotweld the steel and form to the sesired shape.
